The LD-5000M was designed for all mail processing in plants as well as associated offices and stations that have dumping operations. This is an excellent dumper for 010 opening unit operations.

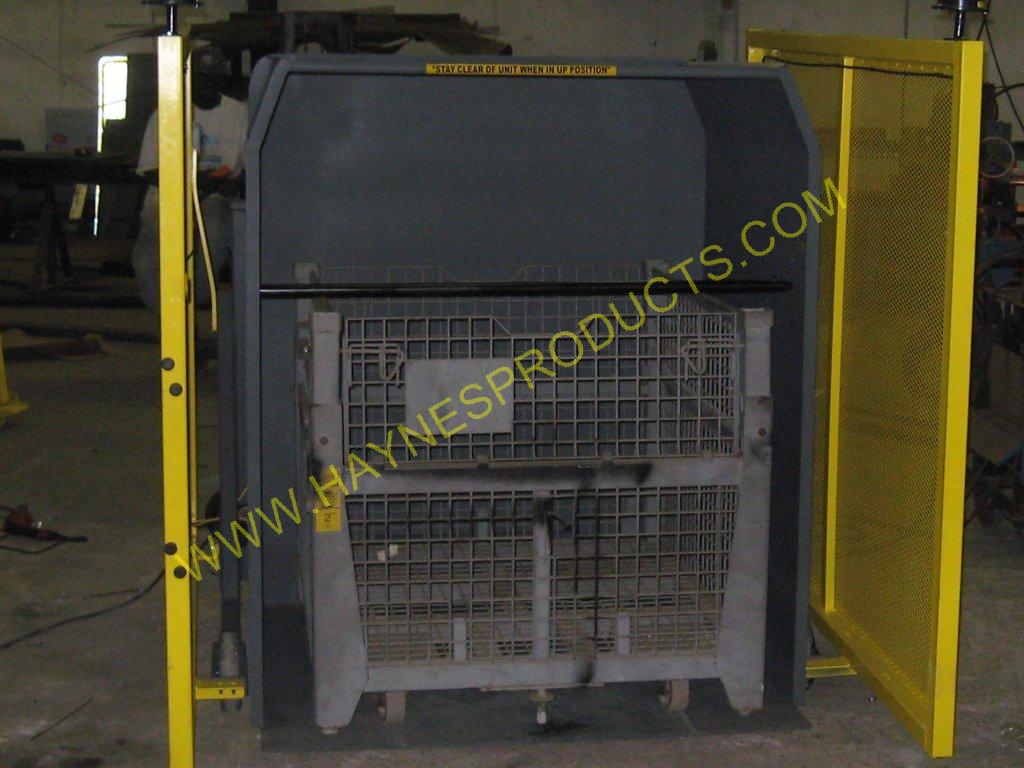

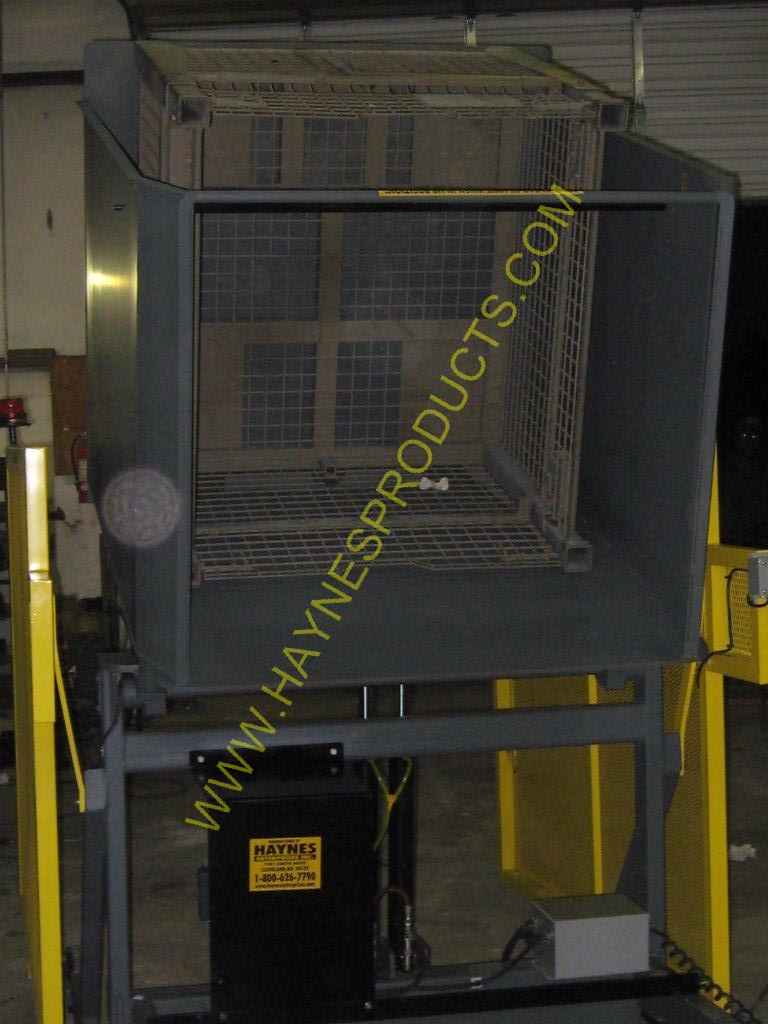

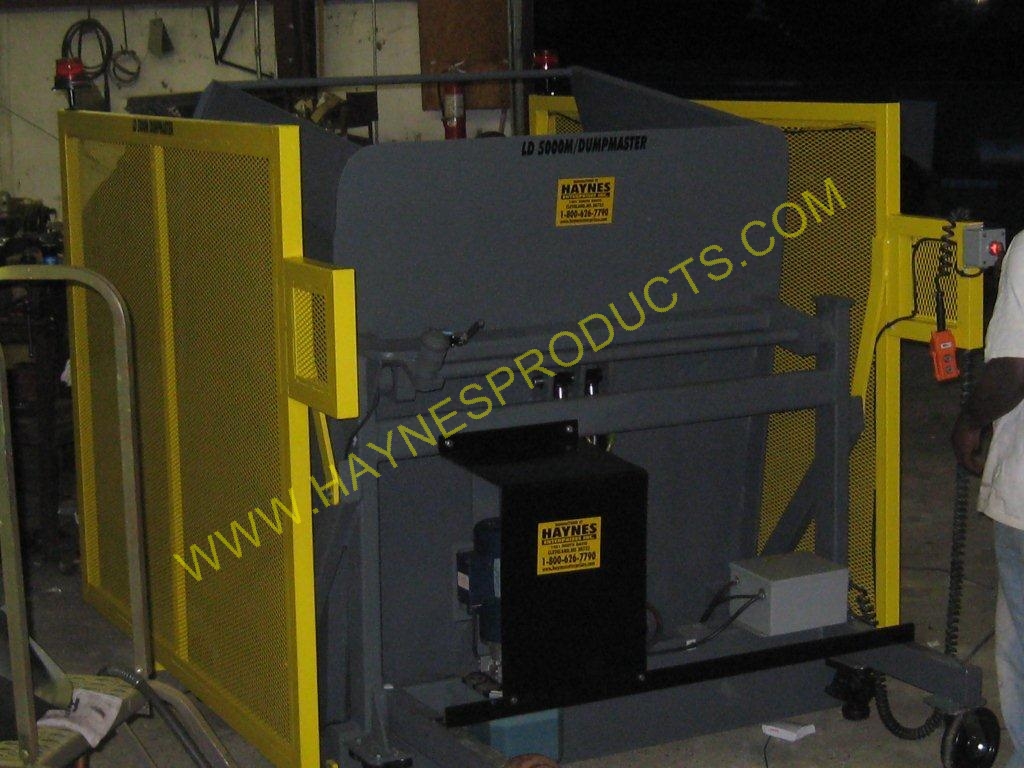

Dumpmaster_LD5000M_C_large_01dumpmaster_ld5000m_b_large_01Dumpmaster_LD5000M_A_large_01

This unit dumps the following types of equipment:

1046 Hampers BMC Wire Containers
1033 Hampers 4'-5' Cardboard Boxes
Pallets
  • The LD-5000M is portable and is designed to dump containers of mail onto conveyor belts.
  • The LD-5000M can also be used as a stand alone unit where employees may tilt container up and work mail directly from dumper into sorting operations.
  • This unit is ideal for assocaite offices and large stations.

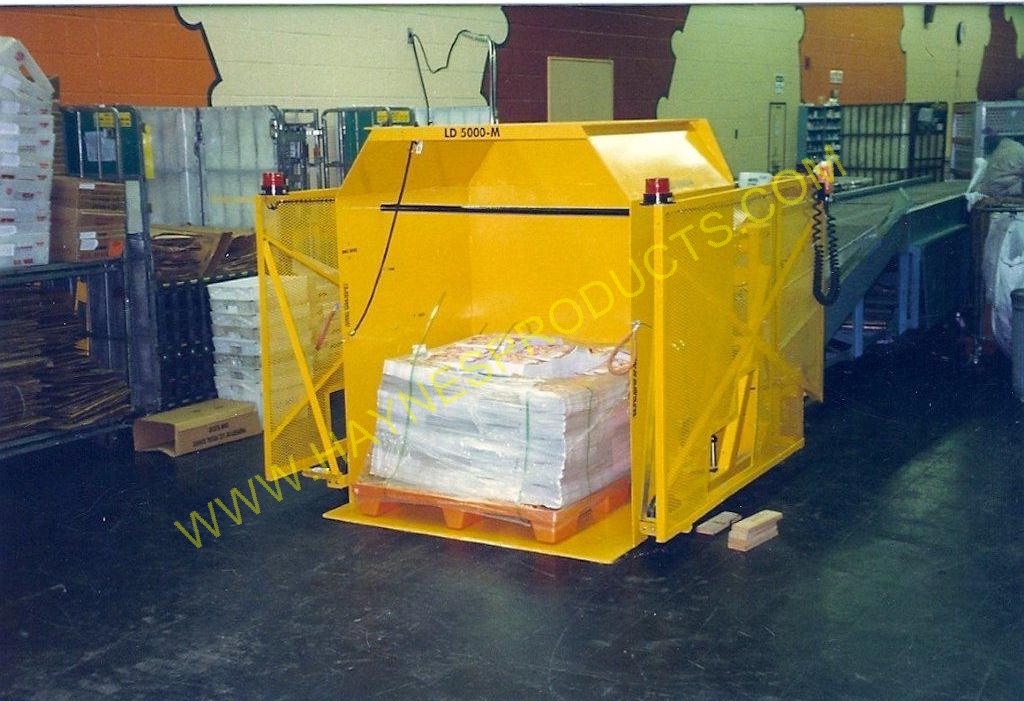

    dumpmaster_ld5000m_d_large_01

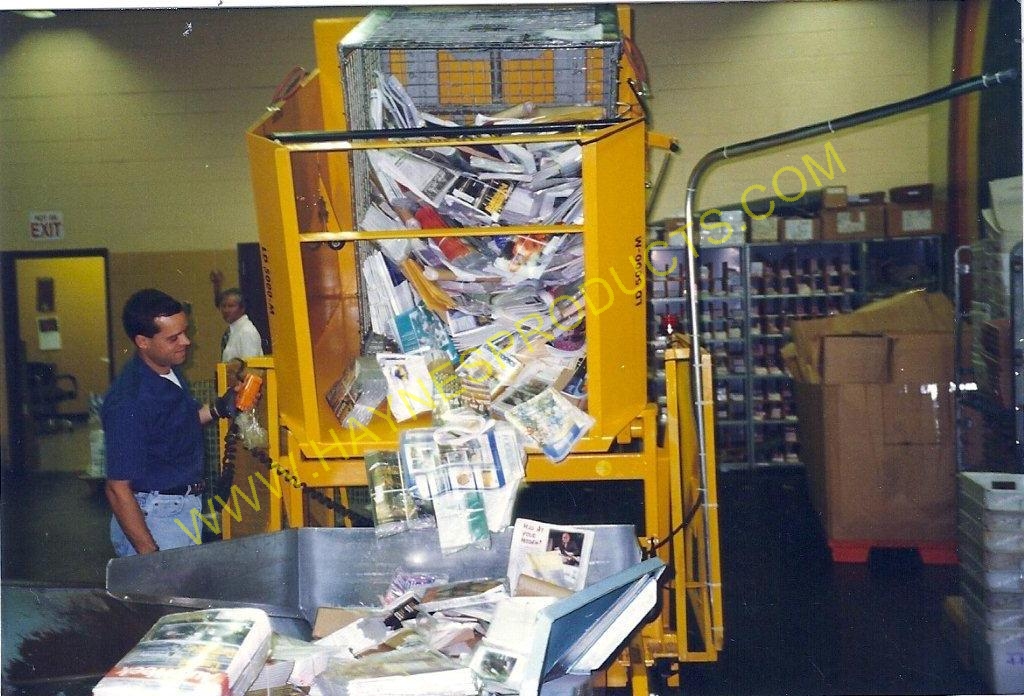

    dumpmaster_ld5000m_e_large_01

General Info & Specs.

Cylinder 2'3" Dia x 20" Stroke Single Acting
Pivot Bearing McGill Pivot Bearing
Dump cycle 22 Seconds
Moveability Unit may be portable or anchored
Safety Screen Wire Mesh (2)
MFG Warranty 1 year; parts only

Electrical Systems

Enclosure Nema 12
Primary Voltage 208/3ph
Starter Siemens 3TF & Fuse Transformer
Motor 3HP
Limit Switch Micro Switch/LS3 N.C.
Sensor Sunx - EQ - 34

Hydraulic Systems

Pump 3 GPM pump mounted to motor
Valve Single acting dump valve

Warranty - 1 year warranty, parts only or major repairs
