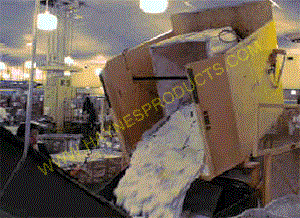

The LD-6000XD Dumpmaster is designed to dump practially all existing postal equipment. Listed below are examples of the equipment it dumps.
| WEST-PAK pallet containers | APMCs (2 at a time) |
| GPMCs (2 at a time) | 1046 hampers |
| 1033 hampers (2 at a time) | 4' and 6' cardboard boxes |
| Pallets of mail | BMC wire containers |
| BMC over the road containers | 1075 U-cart (2 at a time) |
General Info & Specs.
| Pivot Bearing | |
| Cylinder | 2-3" dia x 20" stroke |
| Chute Size | Funneling to 38" (54" x 63" x 86") |
| Dump cycle | 35 seconds |
| Moveability | Portable or mounted |
| Capacity | 5000 lbs |
| Dump Height | 34" |
| Ceiling Height | 12' |
| Dump Angle | 35° |
| Finish | Enamel econo yellow |
| Chute Construction | Carbon steel |
| Safety Screen | Wire mesh |
| MFG Warranty | 1 year; parts only |
Electrical Systems
| Enclosure | Nema 12 |
| Primary Voltage | 208V/20amp |
| Starter | Siemens 3TF and fuse transformer |
| Motor | 5HP |
| Limit Switch | Micro switch/LS3 N.C. |
| Control | Push button station, 2 buttons, single contact |
| Sensor | Sunx EQ-34 |
Hydraulic Systems
| Pump | 5 GPM mini pump mounted to motor |
| Valve | Hydraulic valve |
Warranty - 1 year warranty, parts only or major repairs.
