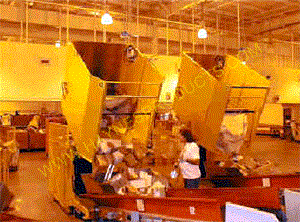

The LD-6000ATL Super Dumper is designed to dump practially all existing postal equipment. Listed below are examples of the equipment it dumps.

WEST-PAK pallet containers APMCs (2 at a time)
GPMCs (2 at a time) 1046 hampers
1033 hampers (2 at a time) 4' and 6' cardboard boxes
Pallets of mail BMC wire containers
BMC over the road containers 1075 U-cart (2 at a time)

General Info & Specs.

Pivot Bearing
Cylinder 2-3" dia x 20" stroke double acting
Chute Size Funneling to 38"
(54" x 63" x 86")
Dump cycle 22 seconds
Moveability Portable or mounted
Capacity 5000 lbs
Dump Height 34"
Ceiling Height 12'
Dump Angle 35°
Finish Enamel econo yellow
Chute Construction Carbon steel
Safety Screen Wire mesh (2)
MFG Warranty 6 months; parts only

Electrical Systems

Enclosure Nema 12
Primary Voltage 208V/30amp or 480V 3PH
Starter Siemens 3TF and fuse transformer
Motor 5HP
Limit Switch Micro switch/LS3 N.C.
Control Push button station, 2 buttons, single contact
Sensors 2-Sunx EQ-34J

Hydraulic Systems

Pump 5 GPM mini pump mounted to motor
Valve Solenoid operated

Warranty - 6 month warranty, parts only or major repairs.
